Blue Star Nozzles

Sewer Jetter Nozzles

14 models from 1/4″ to 1 1/4″ hose threads — each engineered with Optimized 3D Hydro Mechanics for maximum cleaning efficiency. Replaceable threaded stainless steel and ceramic nozzle inserts.

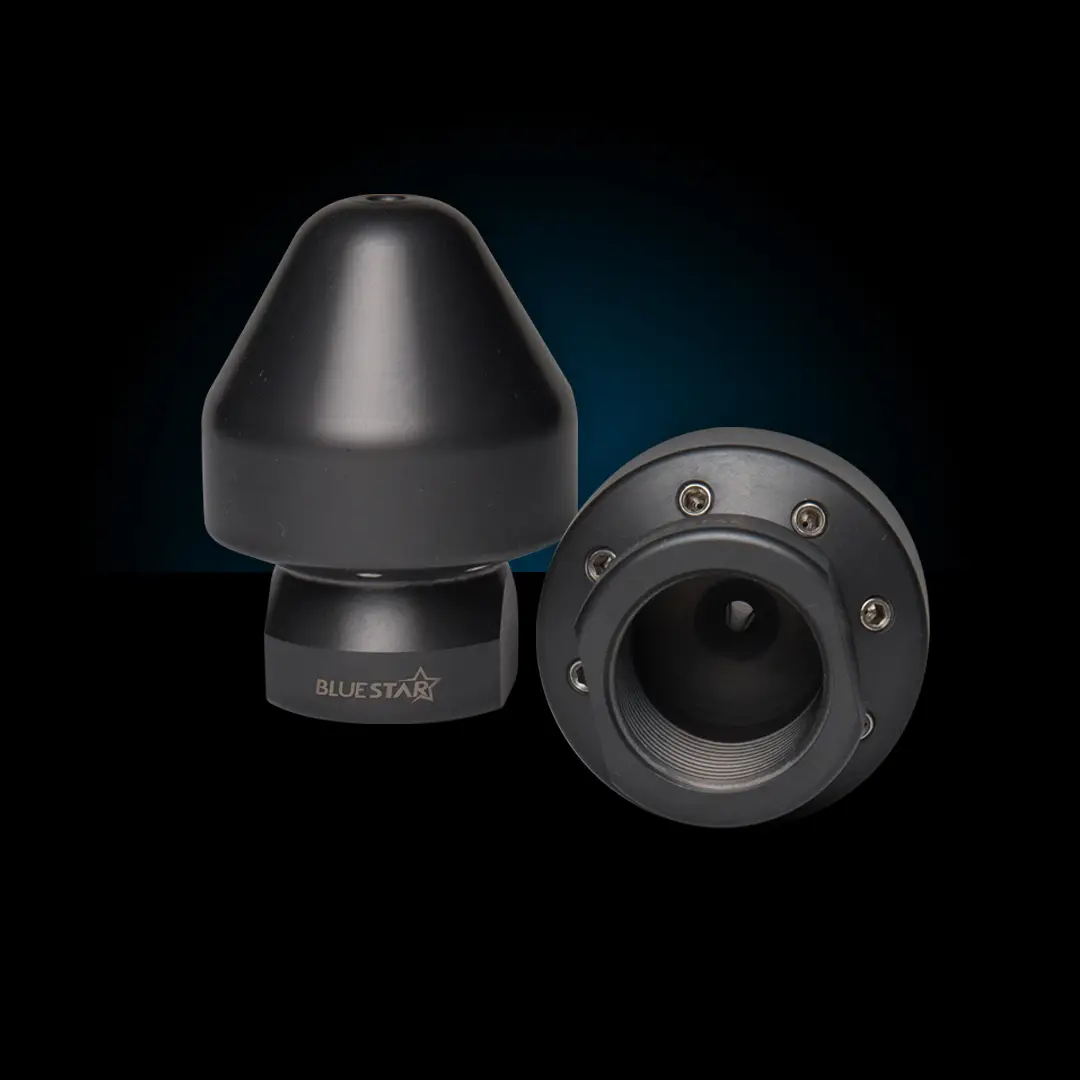

Blue Star Standard sewer jetter nozzle for removing sand and silt

Standard Nozzle

Ideal for removing sand and silt. Wear-resistant steel with one forward jet and blind plug. 23° jet angle (30° for 1/4″). Light, maneuverable, highly efficient.

Request Quote

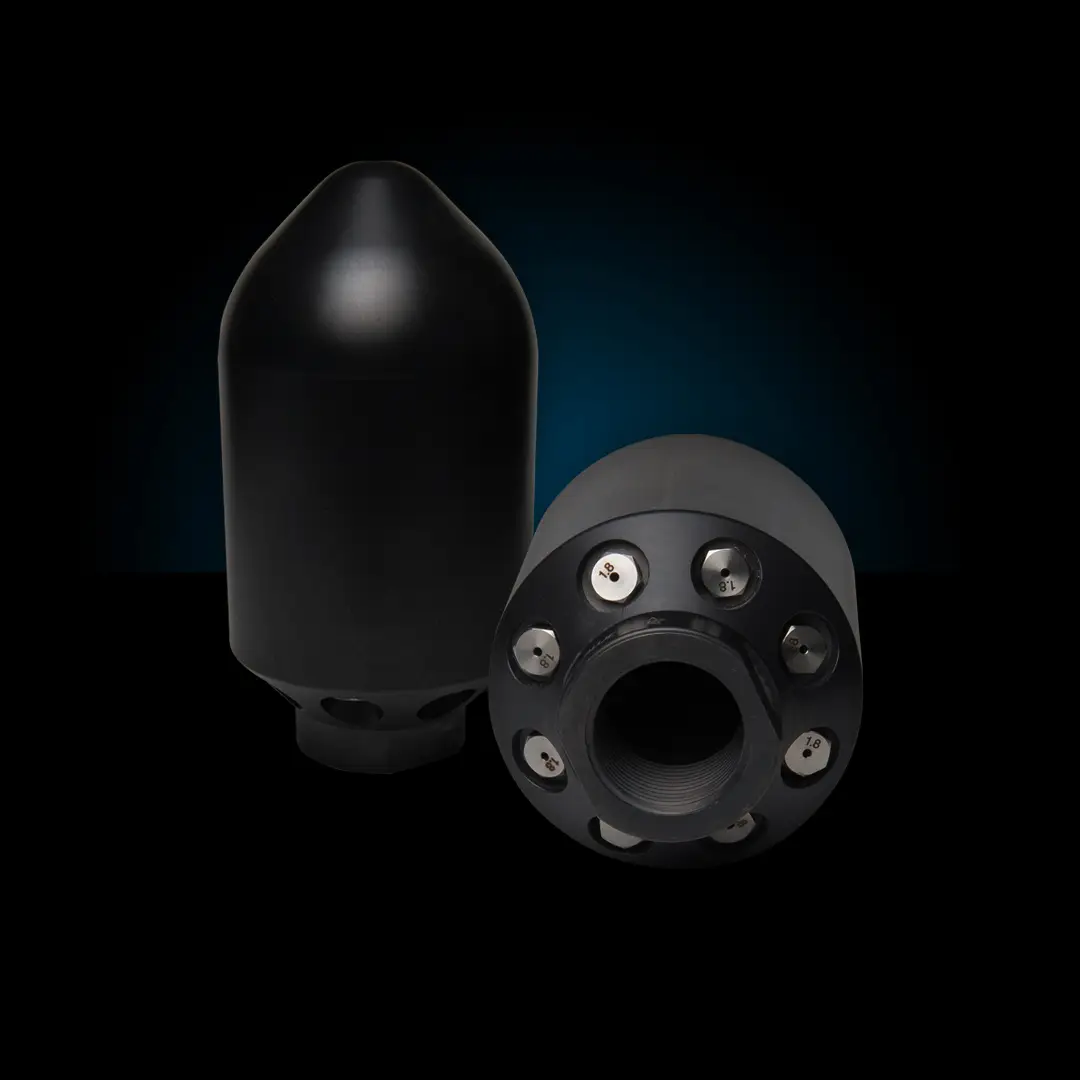

Blue Star General sewer jetter nozzle for preventative maintenance

General Nozzle

Excellently suited for preventative maintenance. Optimized 3D Hydro Mechanics, replaceable stainless steel inserts, ceramic inserts available. 15°/25° jet angles.

Request Quote

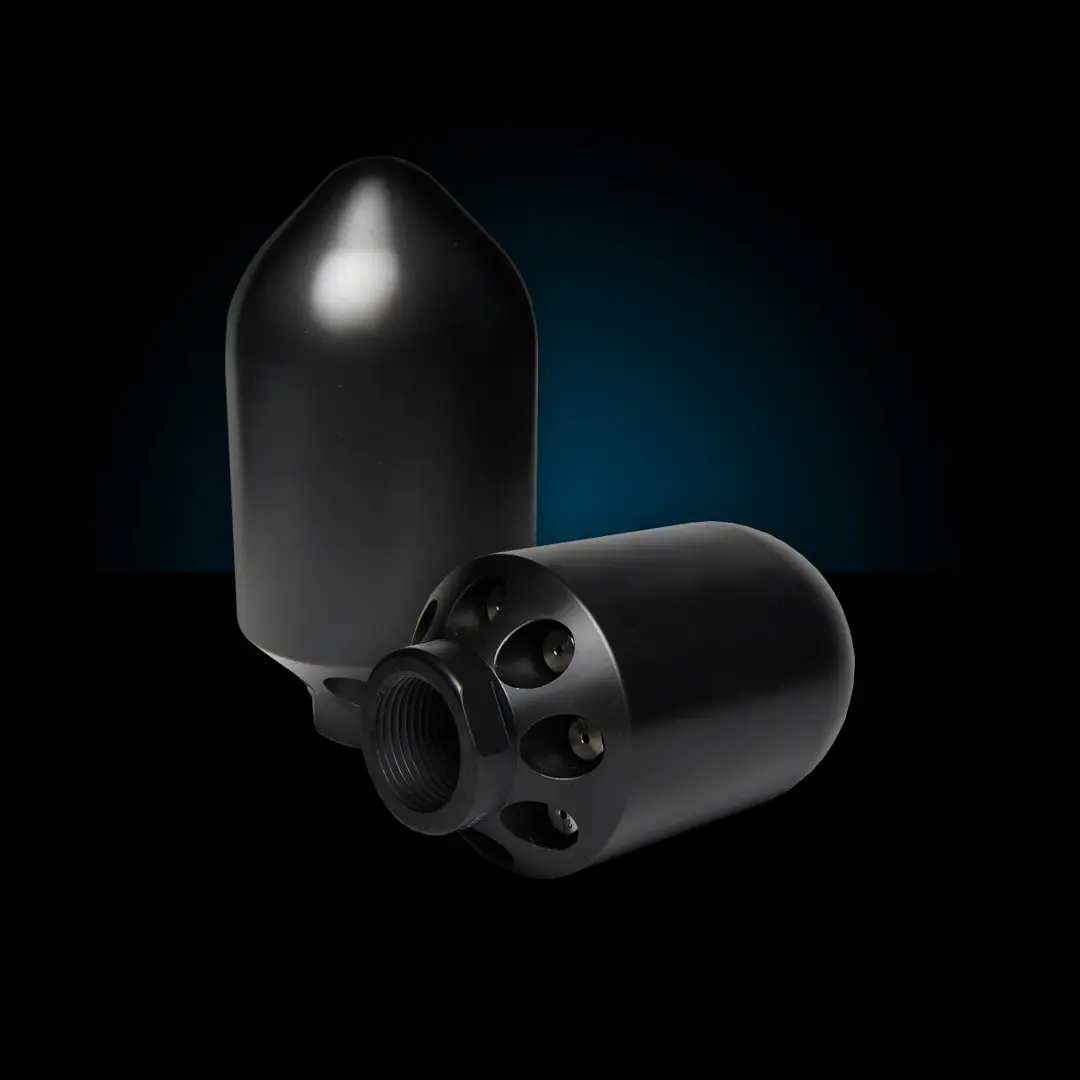

Blue Star Power Pull sewer jetter nozzle with excellent traction

Power Pull Nozzle

Excellent traction and cleaning performance. 7° jet angle for tremendous pull. Ideal for cleaning and removing sand, silt, and large debris in mountainous terrain.

Request Quote

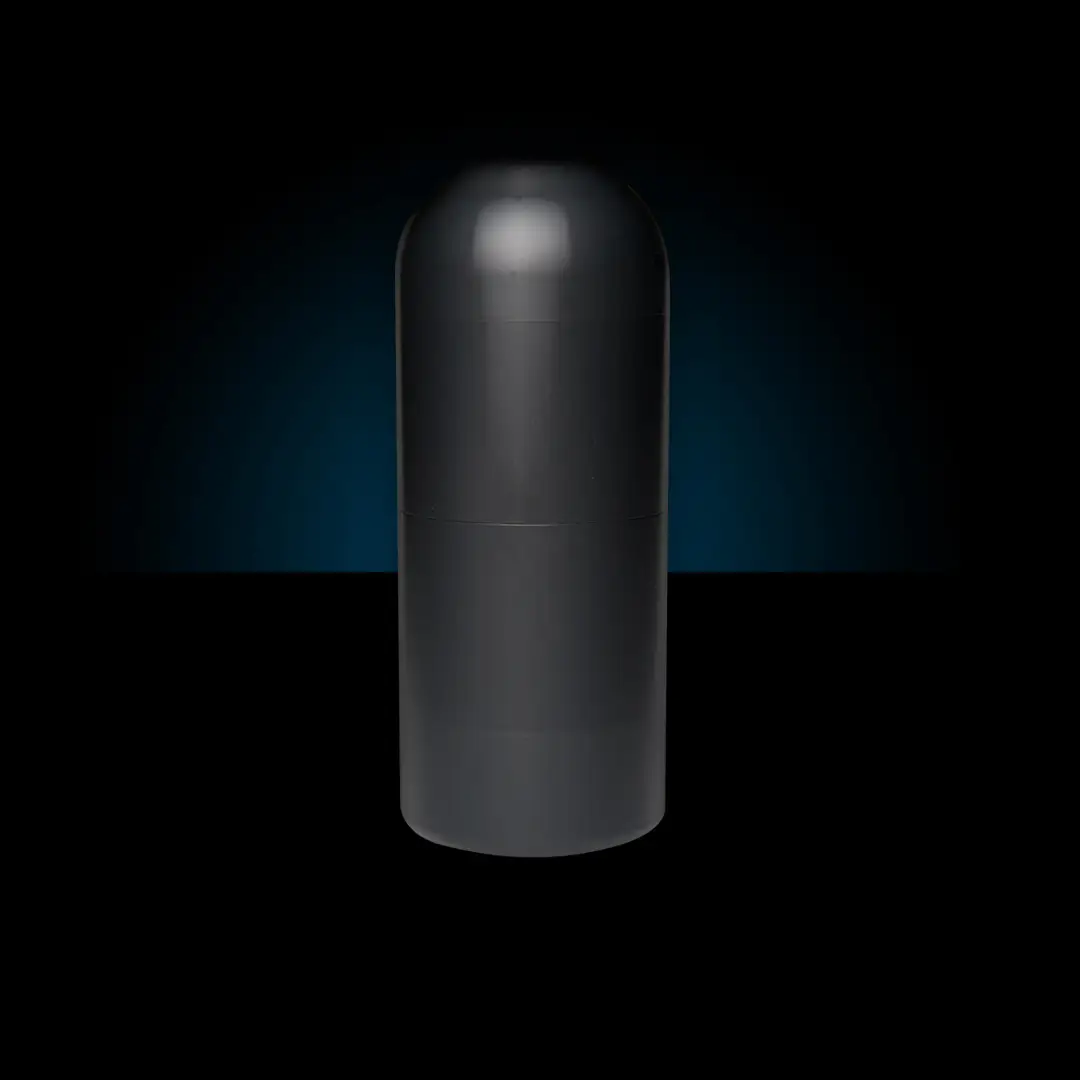

Penetrator Nozzle

Perfect for egg profile pipes. Navigates over small voids with 8 individual 12° water jets. Optional pulling eye. Penetrator Big available for larger pipes.

Request Quote

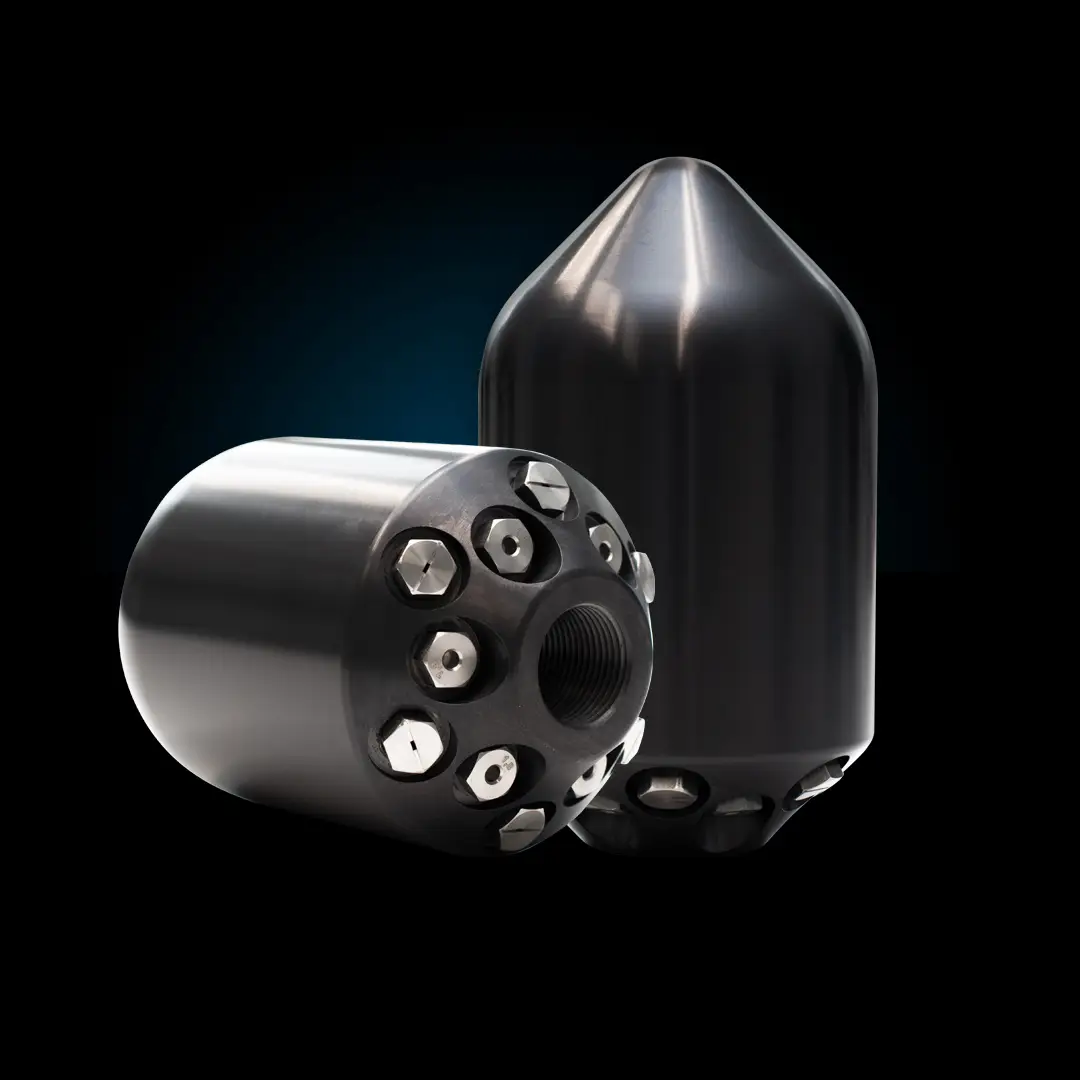

Emperor 360 Nozzle

Ideal for tough substances and basic cleaning. Fan jets clean pipe interior streak-free 360°. Indispensable hydromechanic tool prior to video inspection.

Request Quote

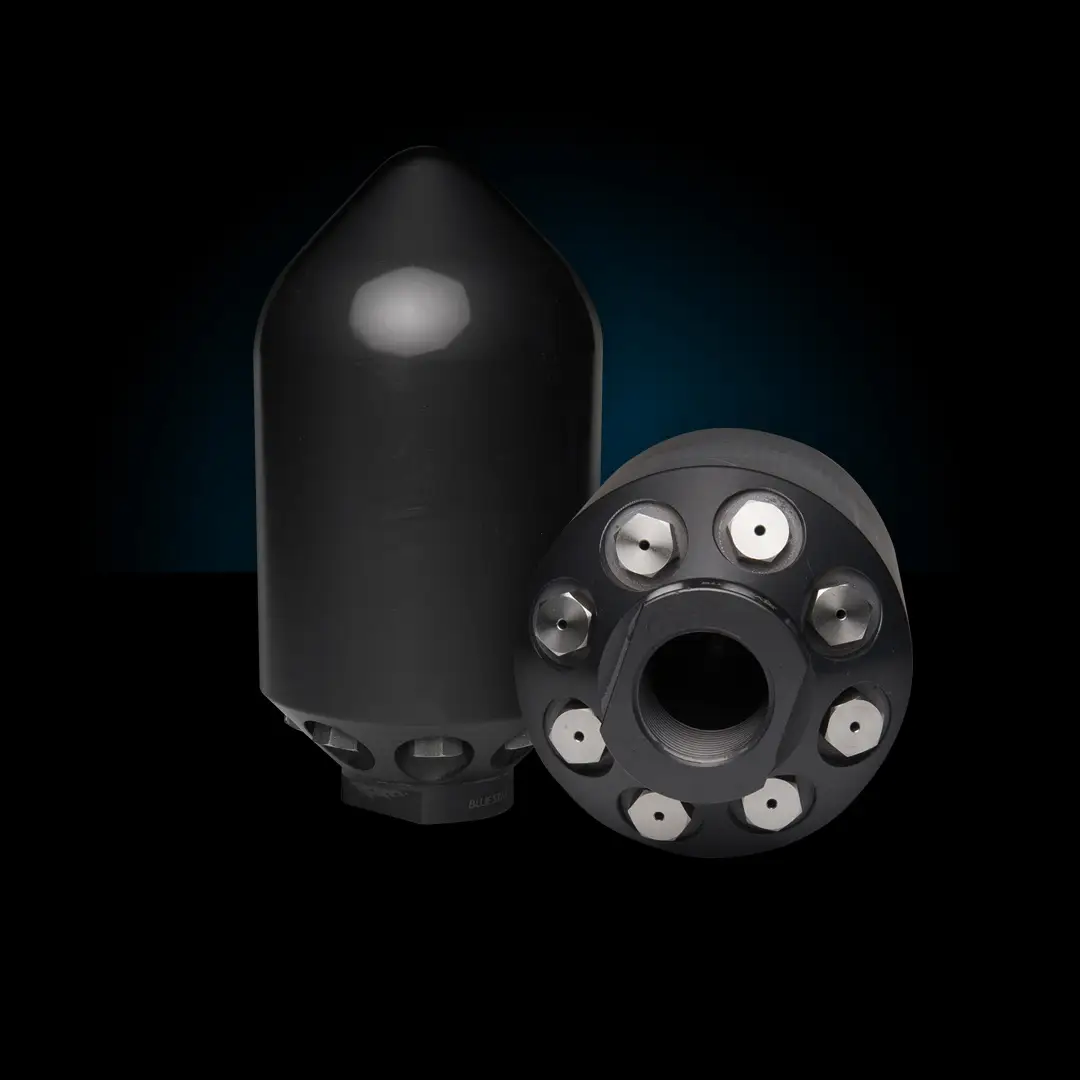

Blue Star Stealth sewer jetter nozzle balancing traction and cleaning

Stealth Nozzle

Ideal balance between traction and cleaning. Dual jet angles (12° and 18°, four jets each) for powerful traction and effective cleaning of sewer and storm lines.

Request Quote

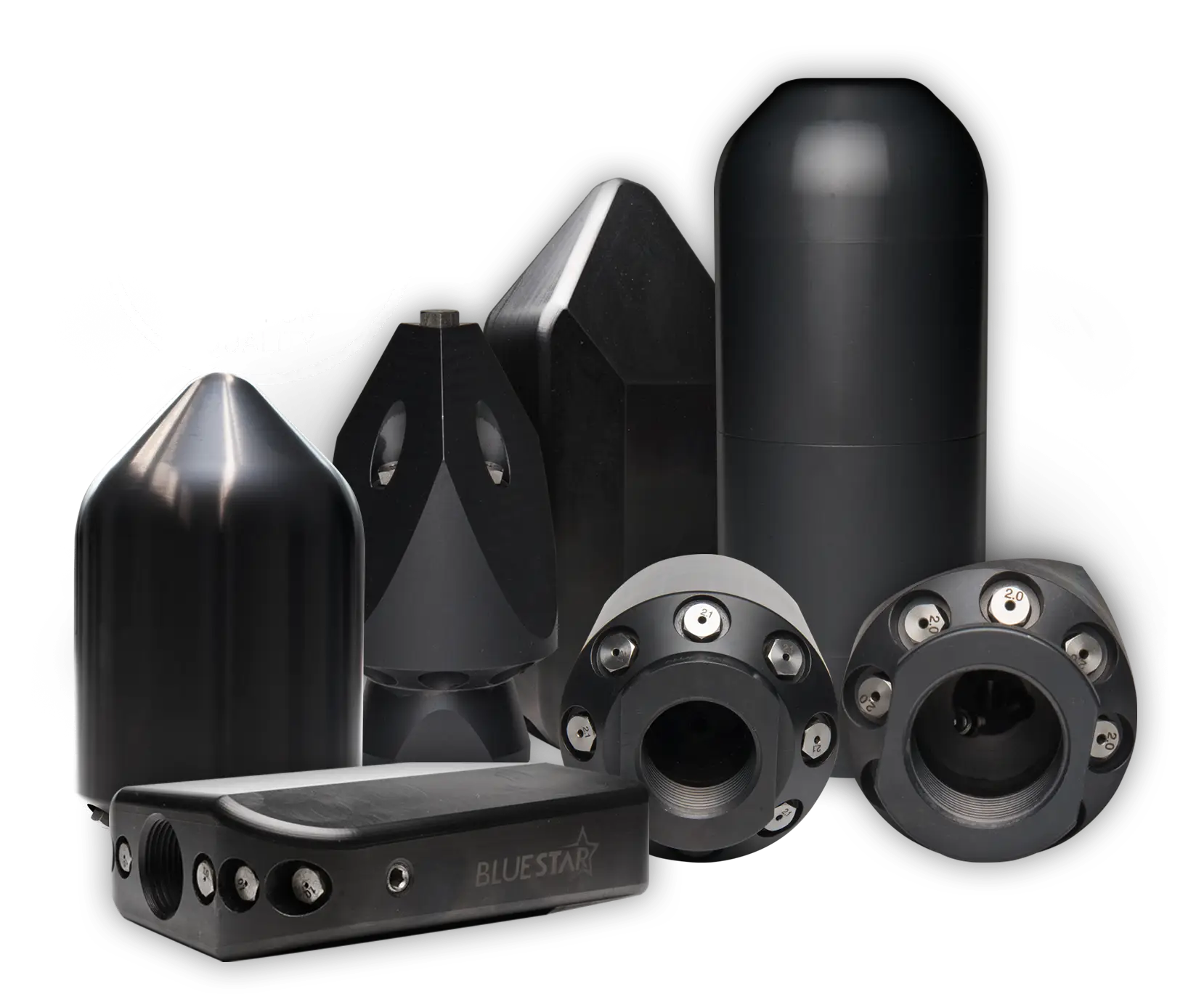

Blue Star sewer jetter nozzles full range all 14 models

Additional Models

Aluminum Power Pull, Anti Blower, Arrow (with Drill Point), Emperor (standard), Power Pull LRG, Raven, Spear, and Arrow nozzles — all available on request.

Request Quote

Rotation & Vibration Nozzles

Water-operated rotary nozzles designed for the toughest conditions — grease, scaling, roots, and tuberculation. Stainless steel drive with no lubrication required.

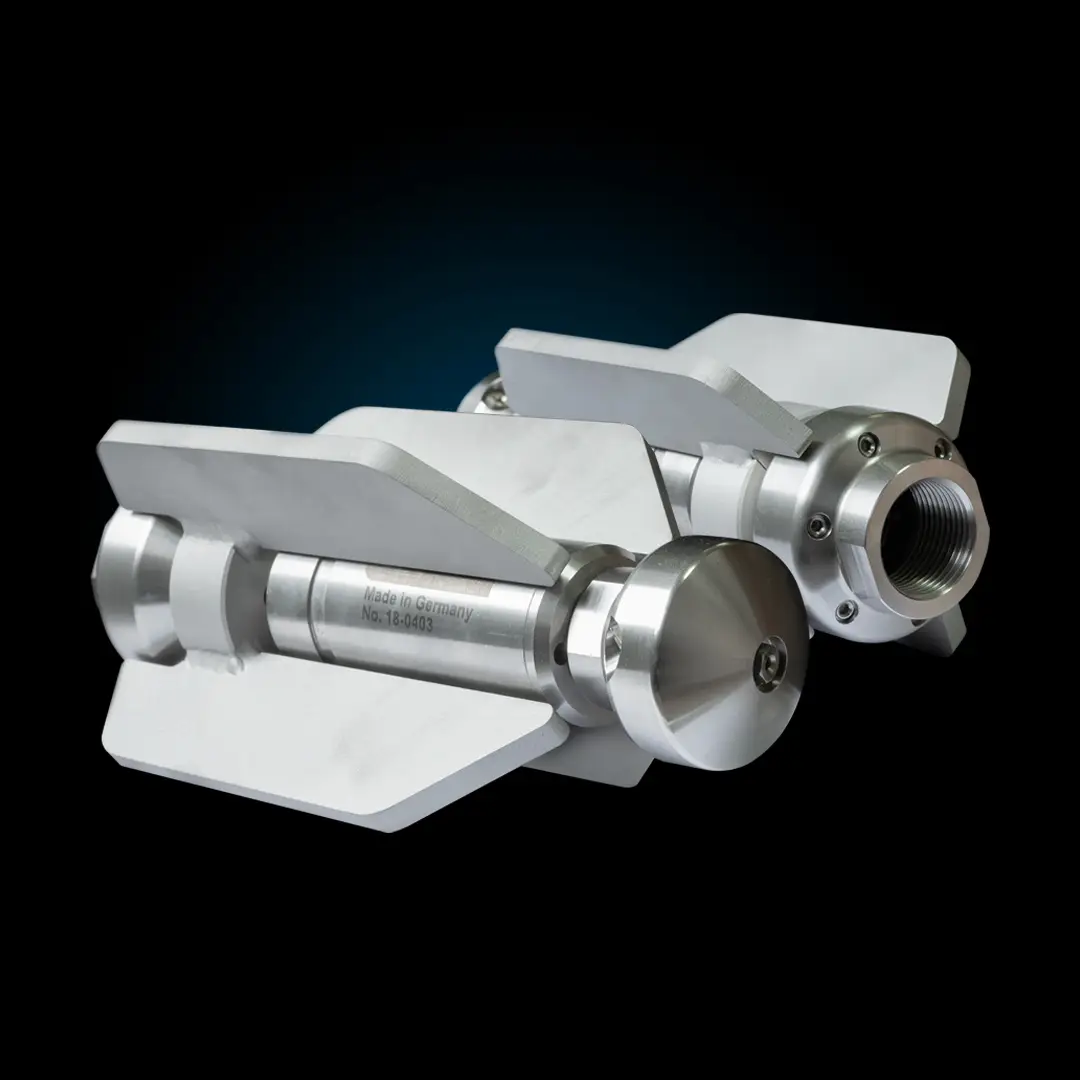

Blue Star Twister rotation nozzle for tough sewer cleaning conditions

Twister Nozzle

Built for the toughest conditions. Cleans 6″–24″ sewer and stormwater pipes. Three components: stainless steel drive, cleaning head with ceramic inserts, rigid skid.

Request Quote

Typhoon Nozzle

Uniform rotary motion with Optimized 3D Hydro Mechanics. Available in standard and Rocker variants for versatile sewer cleaning applications.

Request Quote

Bottom Cleaner

Removes large debris, sand, silt, and sludge from pipe bottoms where standard tools fail. Roll-over bars allow self-righting. Available with 6, 8, 10, or 14 jets.

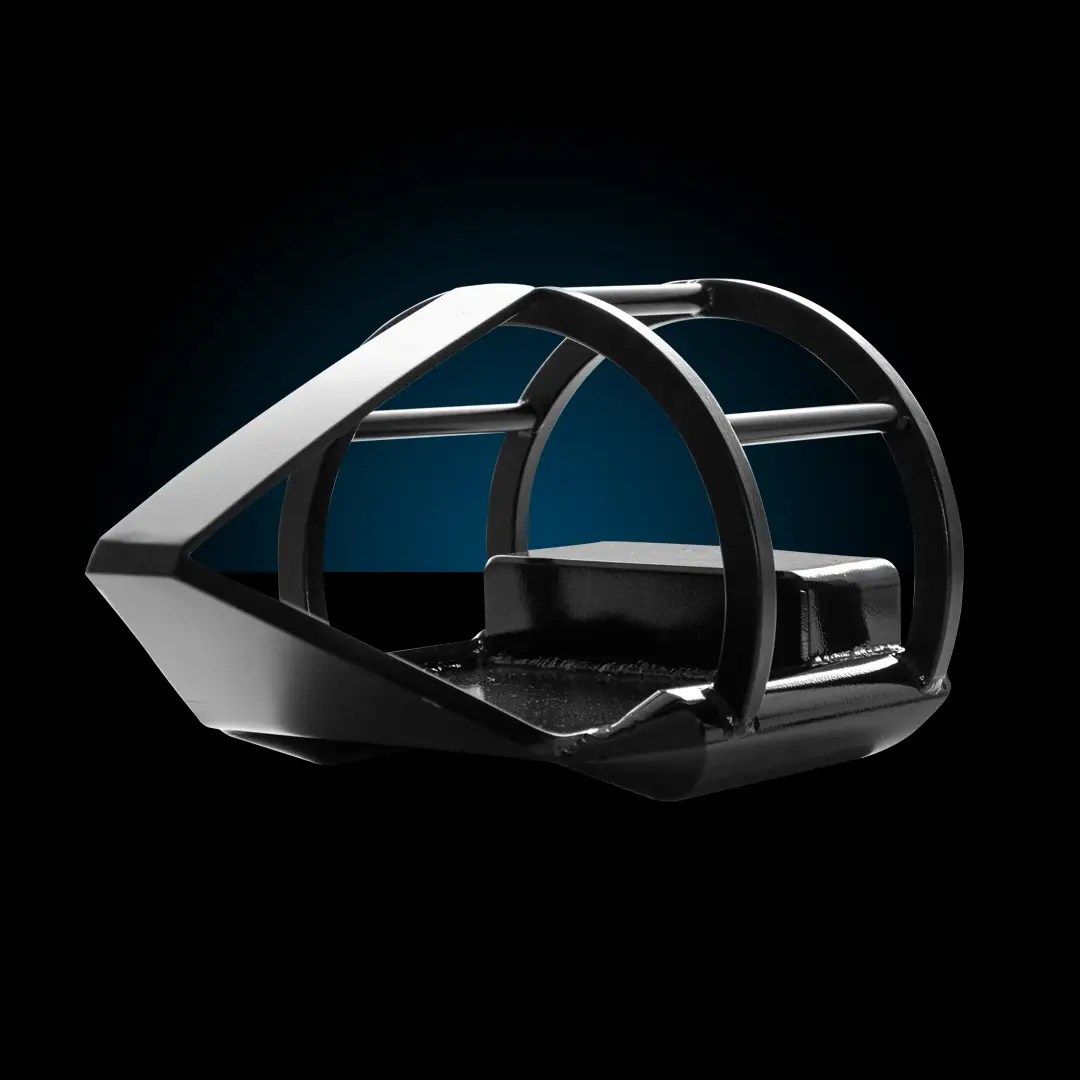

Bigfoot Nozzle

Successful where standard tools fail. Optimized 3D Hydro Mechanics converts pressurized water into unrivaled cleaning power. Rear jets concentrate on pipe bottom. Tandem-capable for large lines.

Request Quote

Root Cutters & Milling Cutters

Turbine-driven chain cutters and milling tools for root removal, blockages, and pipe milling. Spins 6,000–12,000 RPM depending on water flow and pressure.

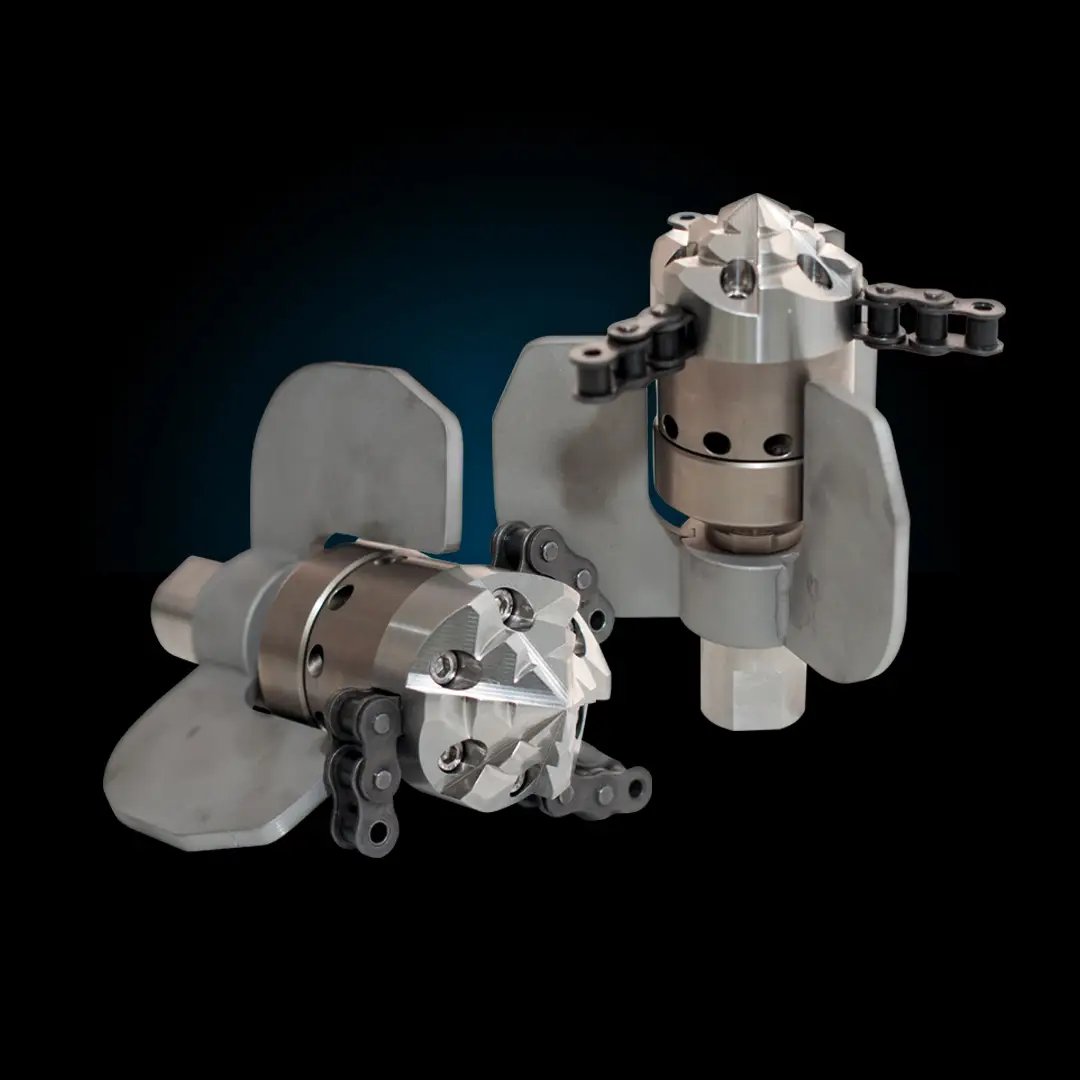

Raptor Chain Cutter

Unsurpassed root removal. Convertible from total blockage remover to chain cutter. Turbine-driven tempered stainless steel drill head, 6,000–12,000 RPM. 1/2″ (4″–6″ pipe) and 1″ (6″–8″ pipe) versions.

Request Quote

Additional Cutter Models

Milling Cutter for root ingrowth and blockages. Raptor with flexible Guide Skid (6″–12″), Raptor Nozzle, Raptor Plus, and Viper Chain Cutter for heavy obstructions.

Request Quote

Technical Specifications

Detailed nozzle specifications — hose threads, flow rates, pipe ranges, jet configurations. All nozzles feature Optimized 3D Hydro Mechanics.

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10130S	1/4″	21 mm	18 mm	R: 6x drilled / FJ M5 ISK	30°	25 l/min	60–150 mm	0.8 kg
10131S	1/2″	50 mm	30 mm	R: 6x drilled / FJ M5 ISK	23°	40 l/min	150–200 mm	0.15 kg
10132S	3/4″	80 mm	60 mm	R: 8x M6 ISK / FJ M6 ISK	23°	120 l/min	100–200 mm	0.8 kg
10133S	1″	80 mm	60 mm	R: 8x M6 ISK / FJ M6 ISK	23°	200 l/min	150–250 mm	0.8 kg
10134S	1 1/4″	80 mm	60 mm	R: 8x M6 ISK / FJ M6 ISK	23°	200 l/min	200–300 mm	1 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10180S	1/2″	70 mm	45 mm	R: 6x M6 ISK / FJ M6 ISK	15°/25°	40 l/min	100–250 mm	0.7 kg
10181S	3/4″	113 mm	60 mm	R: 8x M8 ASK / FJ M6 ISK	15°/25°	90 l/min	100–300 mm	1.6 kg
10182S	1″	150 mm	80 mm	R: 8x M10x1 ASK / FJ M10x1 ISK	15°/25°	200 l/min	150–400 mm	4.1 kg
10183S	1 1/4″	150 mm	80 mm	R: 8x M10x1 ASK / FJ M10x1 ISK	15°/25°	200 l/min	150–400 mm	4.1 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10161S	1/2″	70 mm	45 mm	6x M6 ISK	7°	40 l/min	100–200 mm	0.7 kg
10162S	3/4″	113 mm	60 mm	8x M10x1 ASK	7°	90 l/min	100–300 mm	1.4 kg
10163S	1″	150 mm	80 mm	8x M10x1 ASK	7°	200 l/min	150–300 mm	4.0 kg
10164S	1 1/4″	150 mm	80 mm	8x M10x1 ASK	7°	200 l/min	300≤ mm	4.0 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10121S	1″	200 mm	80 mm	R: 8x M10x1 ASK / FJ M10x1 ASK	12°	200 l/min	150–400 mm	7.0 kg
10122S	1 1/4″	250 mm	100 mm	R: 8x M10x1 ASK / FJ M10x1 ASK	12°	300 l/min	300–1200 mm	14.0 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10115S	1″	190 mm	110 mm	6x SW14 ASK + 6x Fanjet	15°/30°	230 l/min	300–760 mm	9.0 kg
10116S	1 1/4″	190 mm	110 mm	6x SW14 ASK + 6x Fanjet	15°/30°	230 l/min	300–760 mm	9.0 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10101S	1″	190 mm	100 mm	8x SW14 ASK	12°/18°	230 l/min	200–600 mm	8.0 kg
10102S	1 1/4″	190 mm	100 mm	8x SW14 ASK	12°/18°	230 l/min	200–600 mm	8.0 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10890SC	3/4″	241 mm	95 mm	4x M8 ASK + 6x M6 ISK	60°/12°/18°	150 l/min	100–400 mm	3.6 kg
10990SC	1″	241 mm	146 mm	4x M8 ASK + 6x M6 ISK	60°/12°/18°	230 l/min	150–600 mm	3.6 kg
10991SC	1 1/4″	241 mm	146 mm	8x M10x1 ASK + 6x M6 ISK	60°/12°/18°	330 l/min	150–600 mm	5.2 kg

Variant	Hose Thread	Length	Jets	Min Flow	Pipe Range	Weight
10300SC	1″	445 mm	6x SW14	200 l/min	300–800 mm	15.0 kg
10301SC	1″	445 mm	8x SW14	230 l/min	400–900 mm	18.0 kg
10302SC	1 1/4″	445 mm	10x SW14	230 l/min	500–1400 mm	24.0 kg
10303SC	1 1/4″	445 mm	14x SW14	300 l/min	500≤ mm	25.5 kg

Variant	Hose Thread	Length	Diameter	Jets	Jet Angle	Min Flow	Pipe Range	Weight
10322	1/2″	108 mm	55 mm	3x M6 ISK F + 3x M6 ISK R	22°	60 l/min	100–150 mm	1.6 kg
10323	1″	150 mm	70 mm	3x M6 ISK F + 6x M6 ASK R	22°	150 l/min	150–200 mm	3.1 kg

Videos

Blue Star nozzles in action — demonstrations and real-world use cases from the Intersewer YouTube channel.

Standard Nozzle

General Nozzle

Power Pull Nozzle

Penetrator Nozzle

Emperor 360 Nozzle

Stealth Nozzle

Additional Models

Twister Nozzle

Typhoon Nozzle

Bigfoot Nozzle

Raptor Chain Cutter

Additional Cutter Models

Every Model — Full Specs

Need Blue Star nozzle specs, pricing, or a demo?
