Raising Expectations for Easier Underground Inspections

Minicam inspection systems — Proteus mainline crawlers, HD cameras, lateral launch, SOLO PRO+ push cameras and embedded reporting. Inspect pipes from 1.5" to 86", crawling over 1,600 ft in a mainline.

0"
Max Pipe Diameter
0 ft
Mainline Crawl Distance
0 ft
Push Camera Range
0 ft
Lateral Launch Depth

Proteus Mainline Crawlers

Expertly engineered to make inspection of sewer lines simple. The interchangeable Proteus connection system lets you connect any tractor and camera combination to any cable reel. Inspect pipes from 4" up to 86" while crawling over 1,600 ft in a mainline.

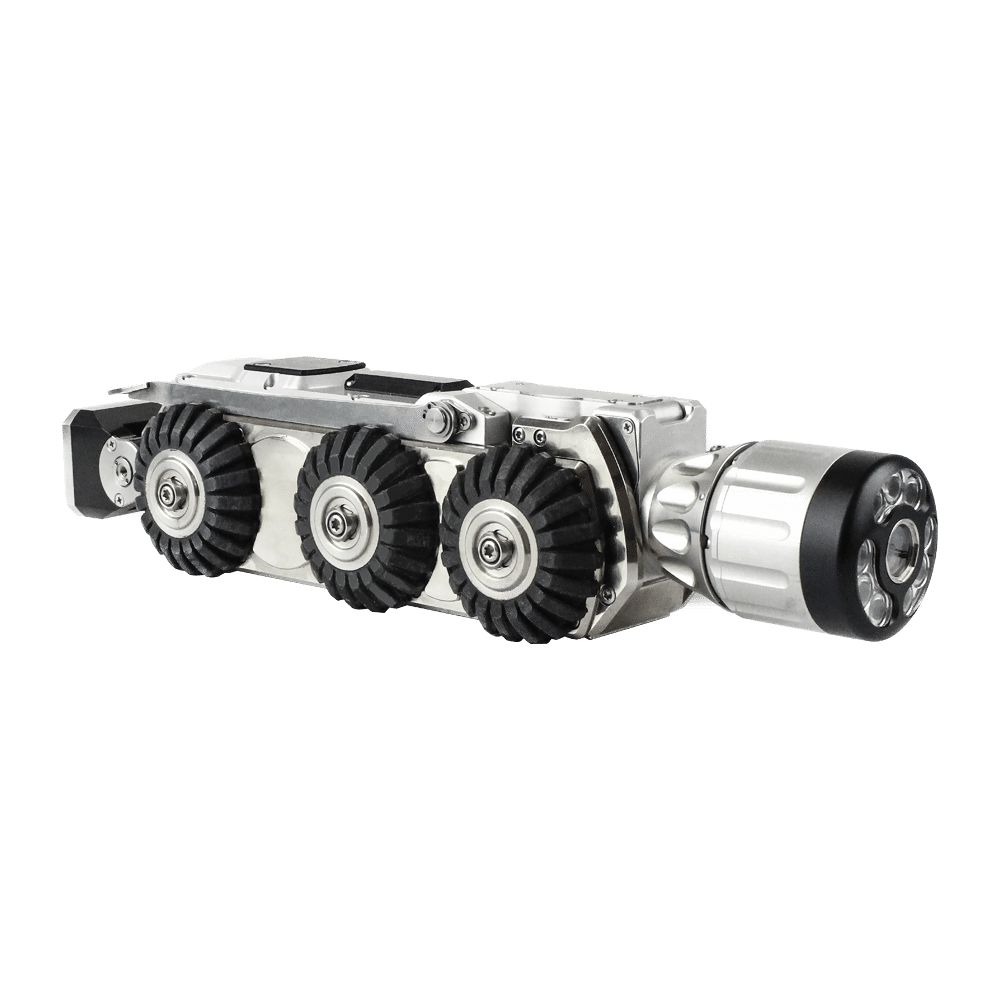

Minicam CRP90 compact Proteus tractor for 4-inch to 9-inch pipes

CRP90 — Proteus Tractor (Compact)

Massive capabilities, skilfully miniaturised. 3 × 3 × 12", 9.9 lbs. Steerable high-torque all-wheel drive, motorised elevator, CAN Bus. Surveys relined 4" pipes; centres camera in pipes up to 9".

4"–9" pipes

Request Quote

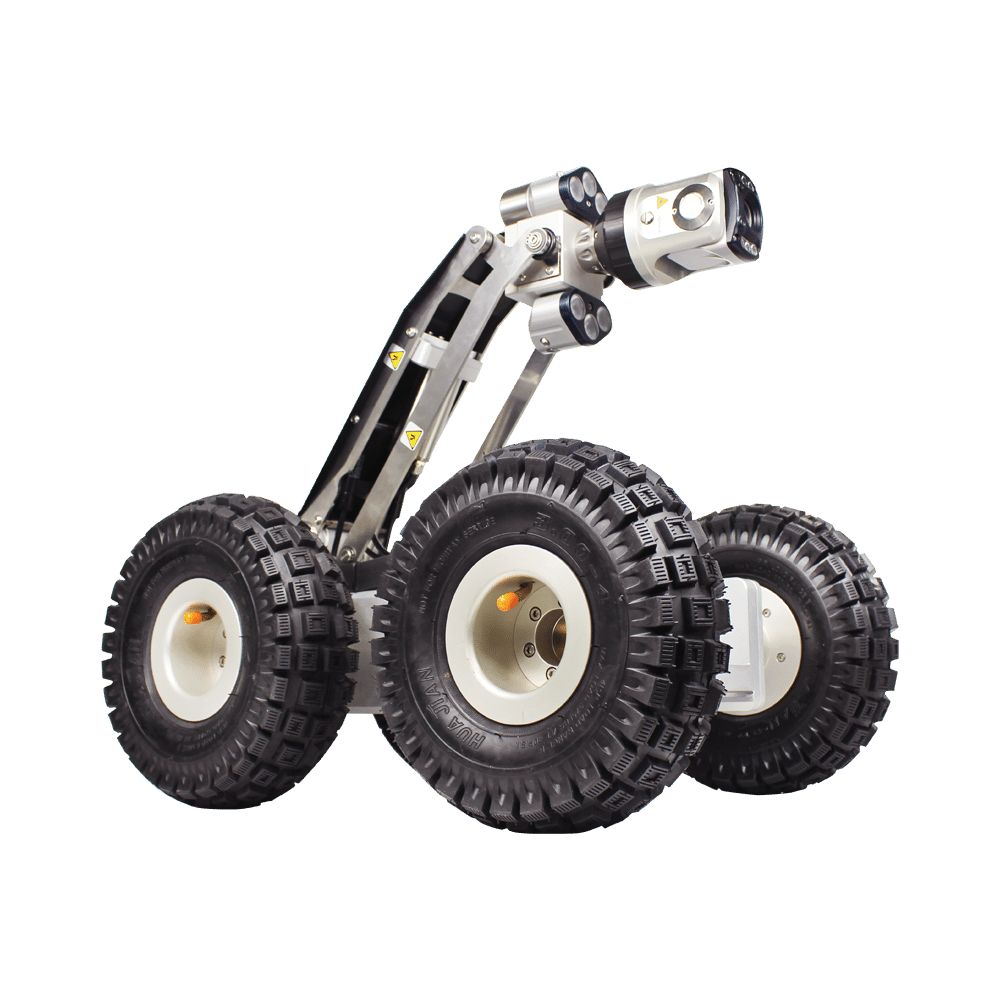

Minicam CRP300 heavy-duty Proteus tractor for 12-inch to 86-inch pipes

CRP300 — Proteus Tractor (Heavy-Duty)

Designed for larger pipe diameters with high flow rates. 8 × 9 × 23", 70 lbs. Dual-axis inclination sensor, motorised elevator, all-wheel drive. Centres camera in up to 86" pipes with elevation platform.

12"–86" pipes

Request Quote

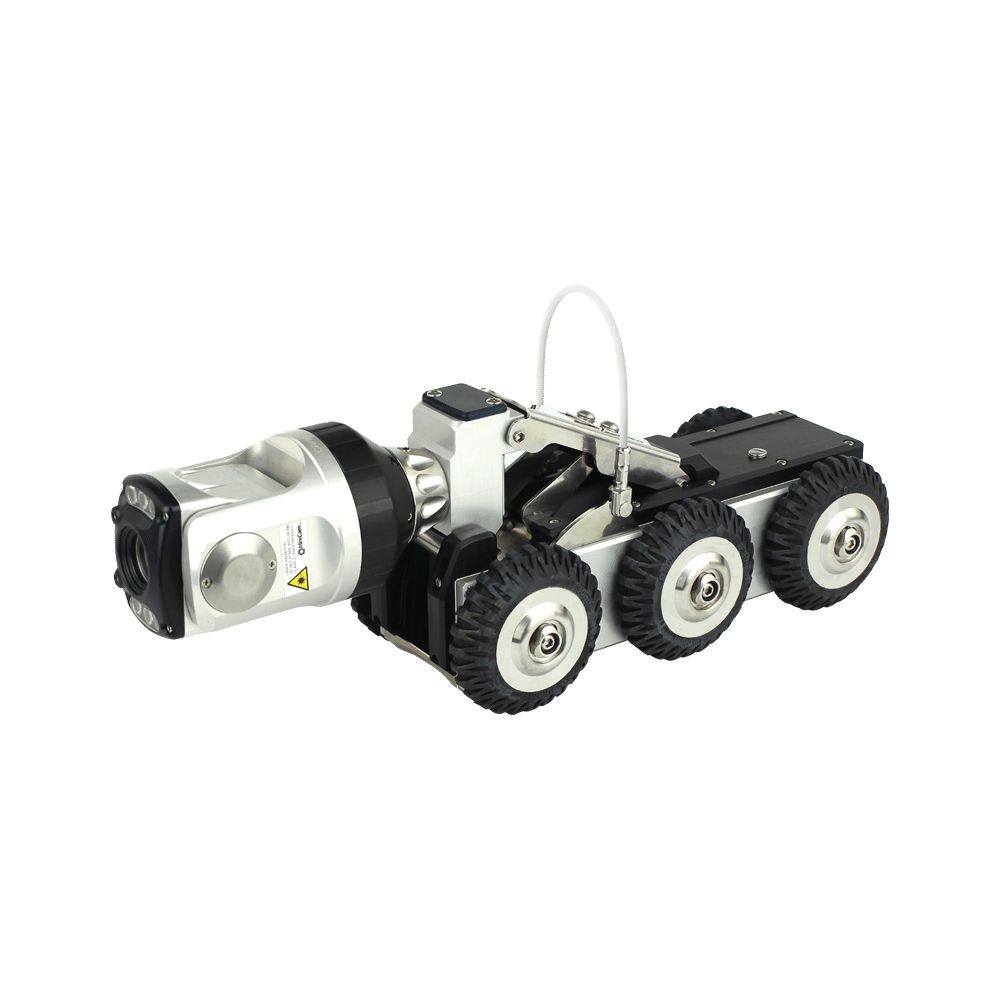

Minicam CPL150S Proteus Lite portable tractor for 6-inch to 24-inch pipes

CPL150S — Proteus Lite (Portable)

Budget-friendly and ultra-portable tractor system. 5 × 5 × 16", 21 lbs. Manual elevator, all-wheel drive, CAN Bus. Access manholes where vehicles can't reach; 820 ft on compact manual reel.

6"–24" pipes

Request Quote

Proteus Cameras

HD without compromise. From the compact axial CAM027 to the 1080p Full HD CAM090-HD — each camera is built with scratch-resistant sapphire glass, ultra-bright LEDs, and 1 bar pressure depth rating.

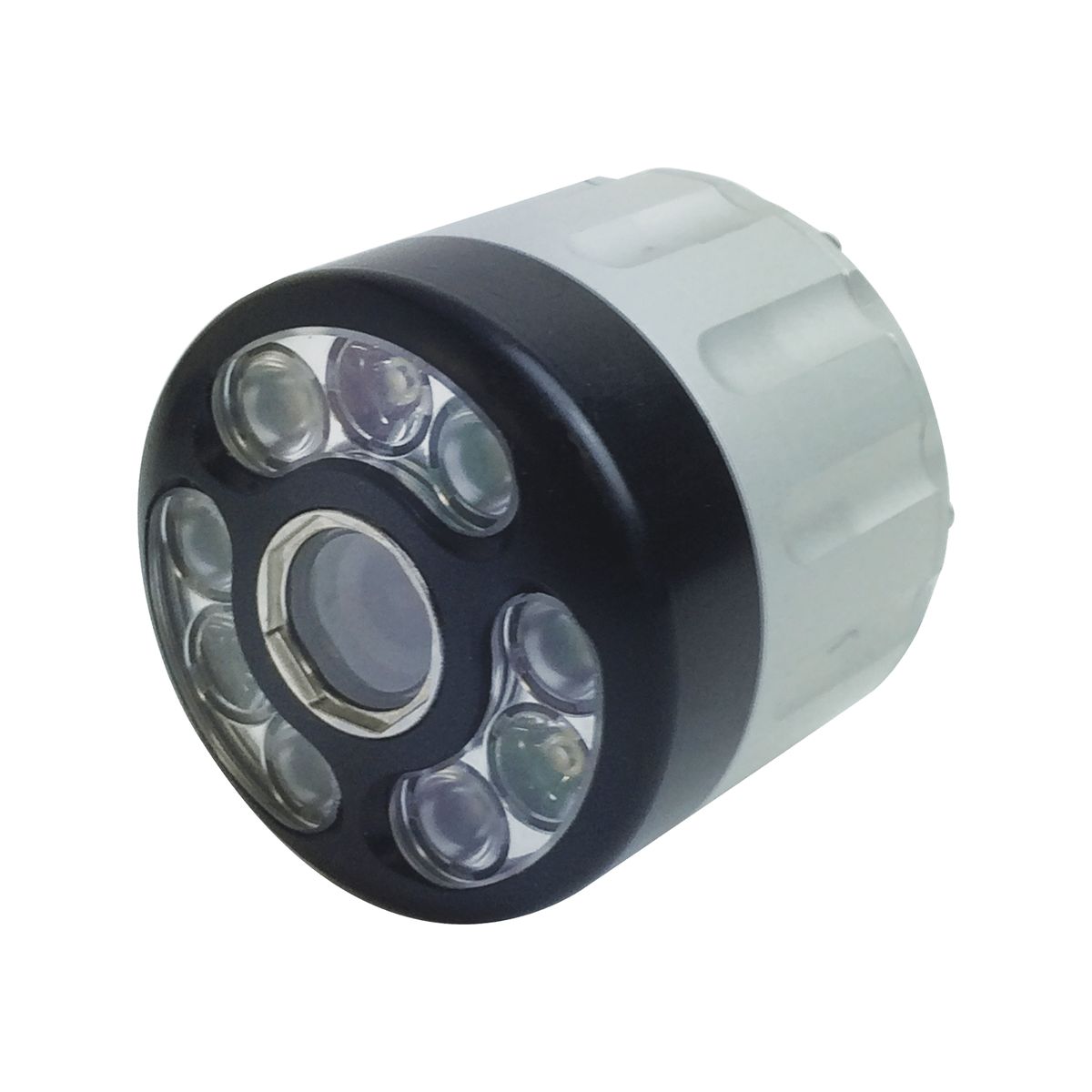

Minicam CAM027 axial self-levelling camera head with triple LED clusters

CAM027 — Axial Camera

Self-levelling axial camera. 3 × 2 × 2", 9 oz. 470 HTVL sensor, <1.0 Lux sensitivity, 9 ultra-bright LEDs in triple clusters, sapphire glass lens, 1 bar pressure rating.

Robust camera head

Request Quote

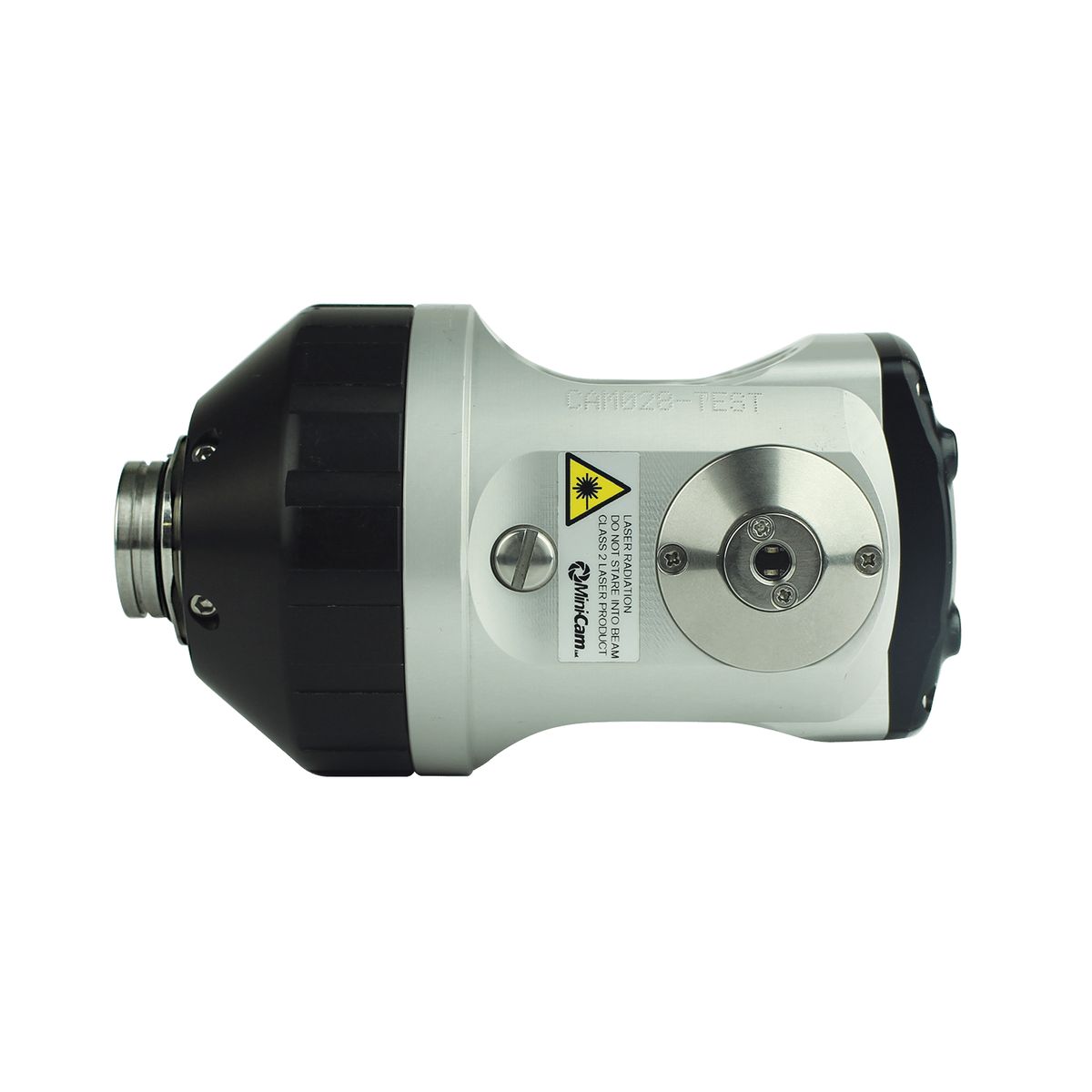

Minicam CAM028L pan-rotate-zoom-laser camera, side view

CAM028L — Pan-Rotate-Zoom-Laser

Continuous 360° rotation, ±135° pan, optical & digital zoom. 800 HTVL, twin lasers for pipe diameter and defect measurement. 6 × 3 × 3", 40 oz. Pipes 3.5"–23.6".

3.5"–23.6" pipes

Request Quote

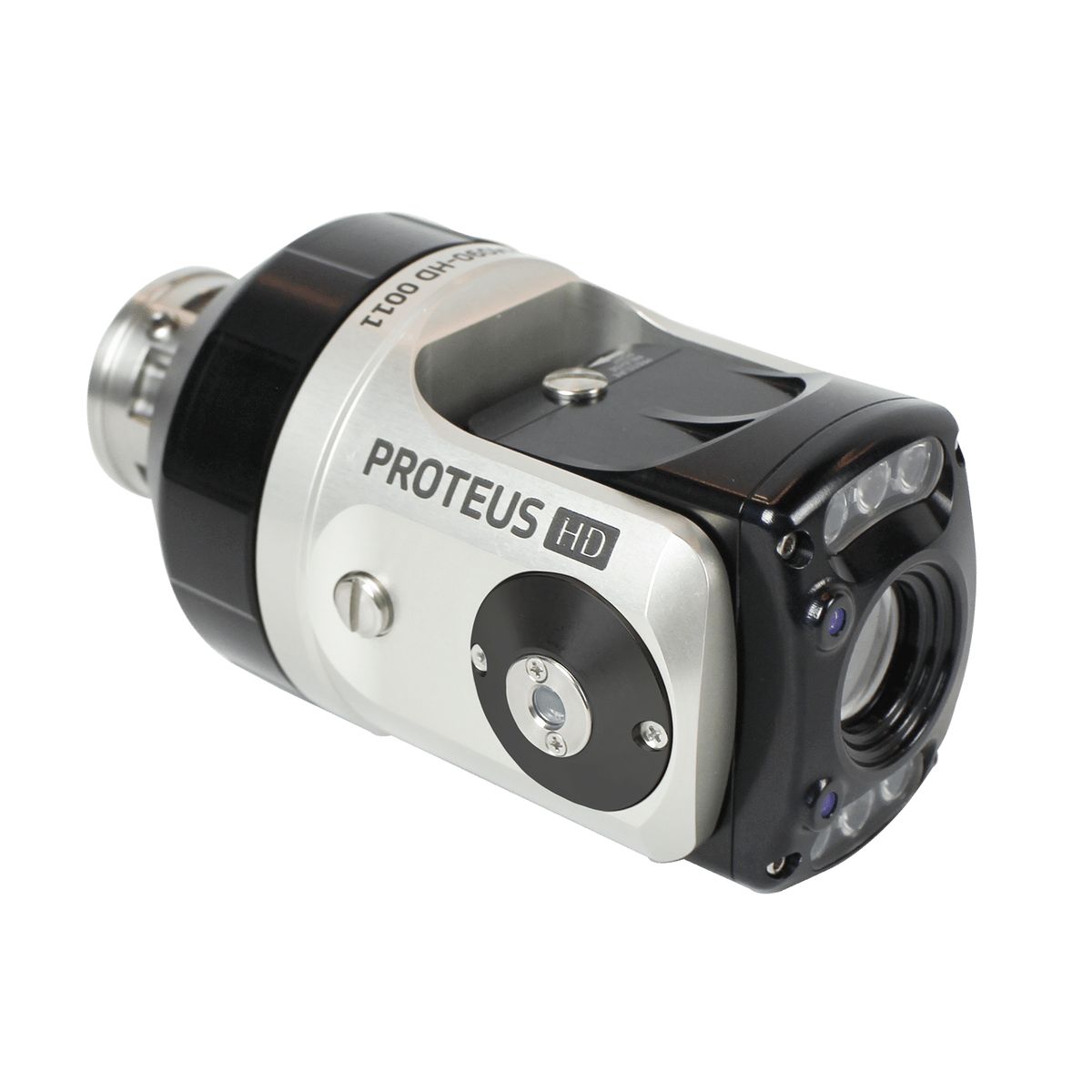

Minicam CAM090-HD 1080p Full HD tilt-rotate-zoom-laser camera

CAM090-HD — 1080p Full HD Camera

Next-gen evolution of the CAM028L. 1080p Full HD (1920×1080), 10× analog zoom, continuous 360° rotation, 135° bi-directional tilt, auto focus. Twin laser measurement (parallel + distance). Ø3.3" × 6.1", 2.4 lbs.

3.5"–24" pipes

Request Quote

Proteus Lateral Launch — LAT150

Launch into the unknown with confidence! The self-propelled LAT150 is a mainline-to-lateral inspection crawler designed to offer range, reliability and functionality. Deploys 150 ft of push rod from 1,150 ft of mainline cable.

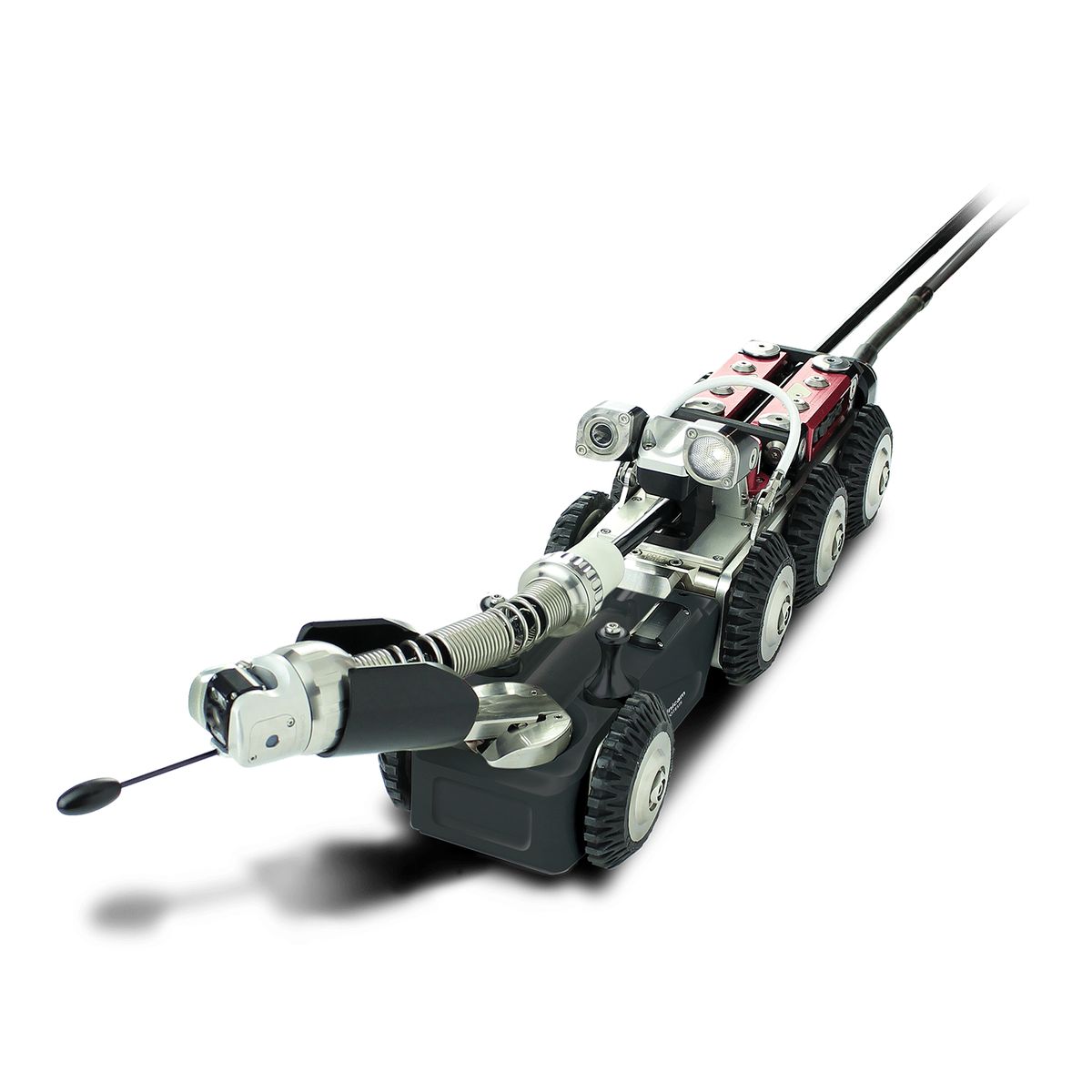

Minicam LAT150 lateral launch crawler system

LAT150 — Lateral Launch System

8× wheel drive, 150 ft push rod deployment, 1,150 ft mainline cable. Launches in mains from 6" to 80", laterals as small as 2.5". Hinged mid-section for 12.5" entry. Observation camera (740TVL), back-eye camera, meterage counter, articulated knuckle connector.

6"–80" mainline · 2.5"+ lateral

Request Quote

SOLO PRO+ Push Camera Systems

Robust. Reliable. Intelligent. All-in-one push camera system with embedded reporting. Built by hand at the UK factory, every system is checked and rigorously tested before leaving. Centers in 3" to 8" pipes; up to 390 ft push distance.

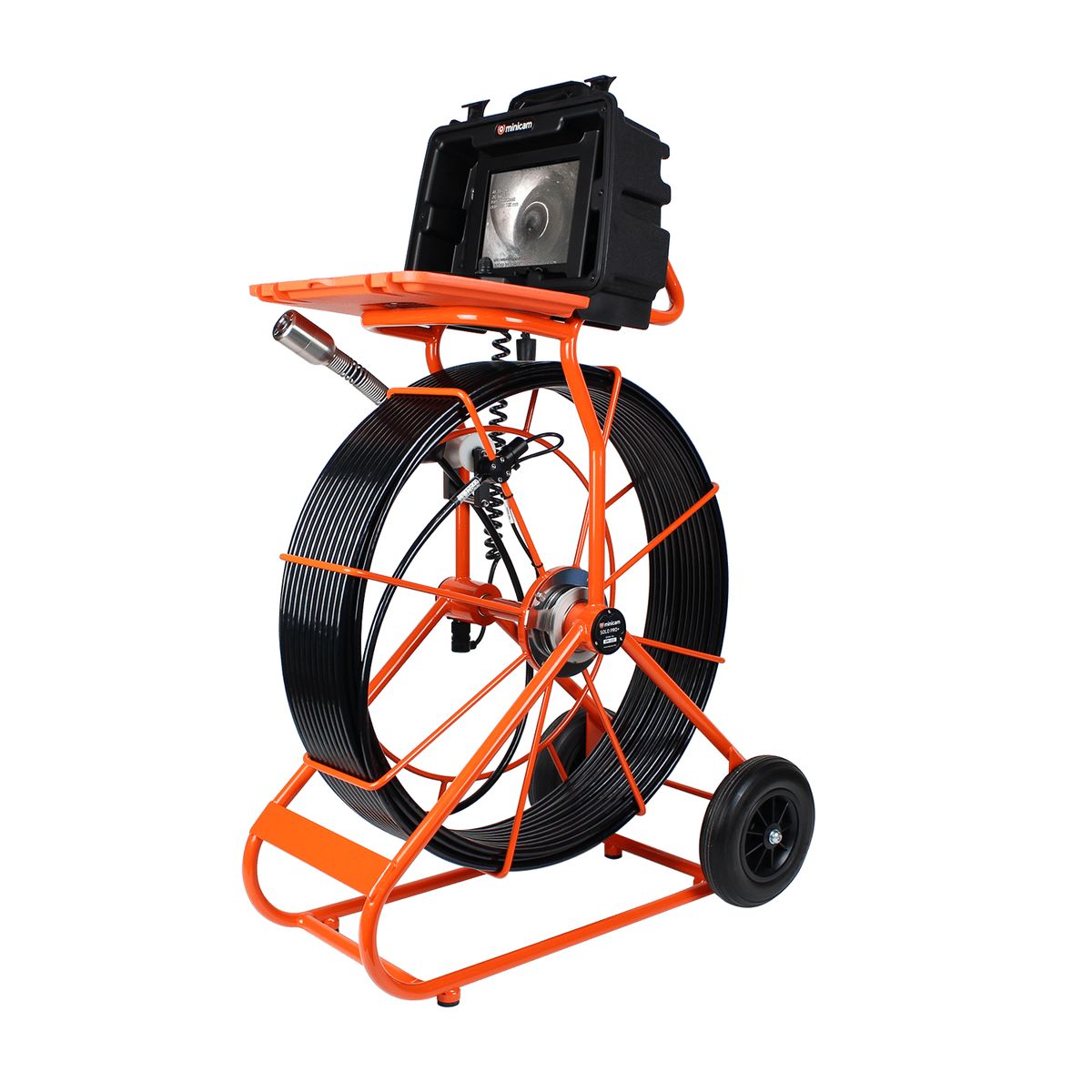

Minicam SOLO PRO+ push camera system, angled view

SOLO PRO+ Push Camera System

WiFi enabled, USB & SD media, embedded Pro PIPE+ reporting, WinCan compatibility. Camera options: CAM025 (self-levelling axial, best seller) or CAM026 (pan & rotate for manholes). 3 rod thicknesses, 4 rod lengths. Up to 390 ft push in mainlines.

3"–8" pipes · 390 ft max

Request Quote

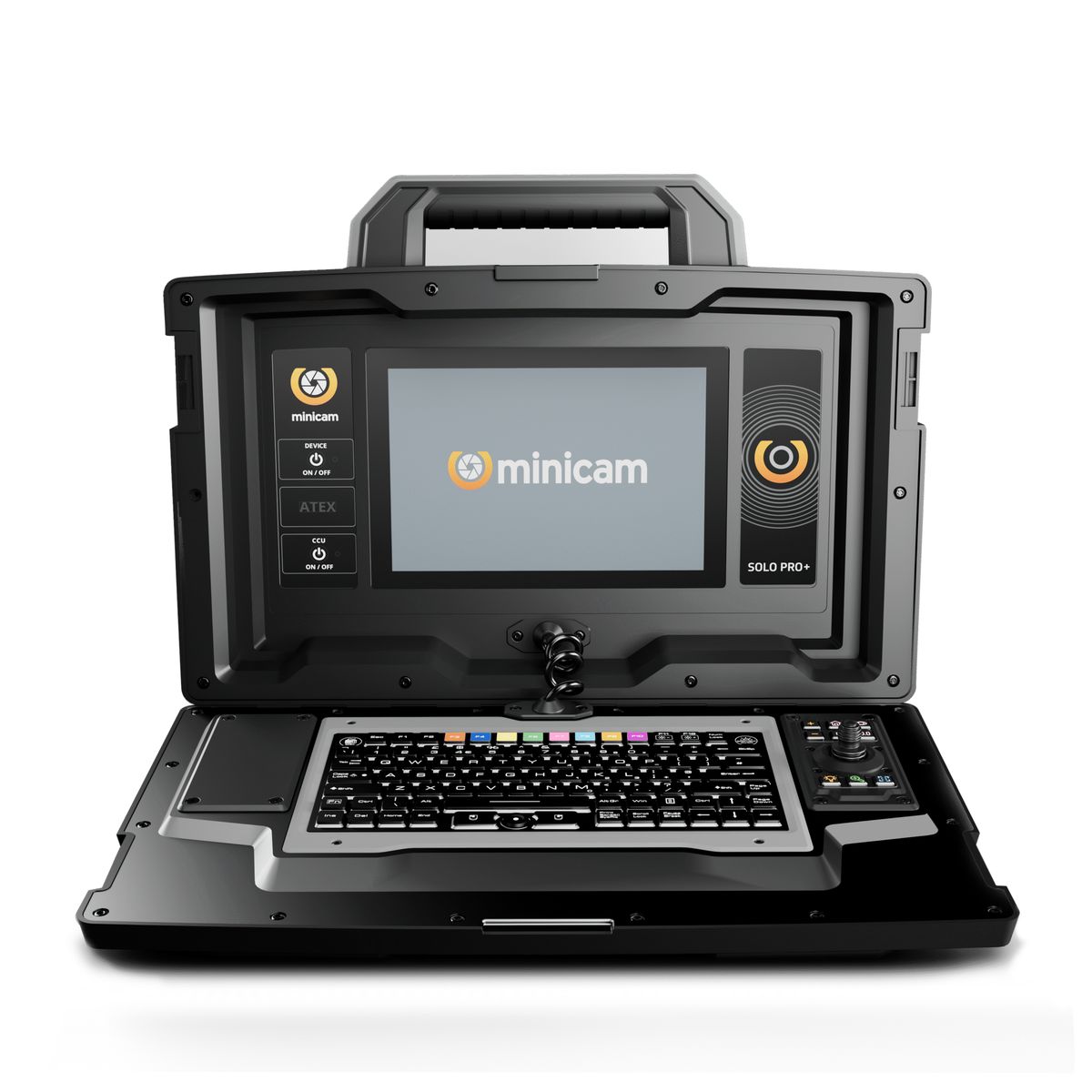

Minicam MCU310 SOLO PRO+ Next Gen control unit, front lid open

MCU310 — Next Gen Control Unit

10" sunlight-viewable touchscreen (800 nits), 128 GB storage (expandable to 2 TB). IP65 rain-proof. WiFi report sharing, WinCan Cloud upload. Joystick control, SONDE settings (33/512/640 kHz). Languages: EN, FR, DE, RU.

IP65 · 10" touchscreen

Request Quote

Control Units & Reporting Software

Designed with the operator in mind. Embedded Pro PIPE+ reporting software generates on-site reports with PDF export. Full WinCan compatibility — offload via USB/SDHC or upload to WinCan Web Cloud for team-wide access.

Pro PIPE+ Reporting Software

Embedded in every control unit. Observation entry, on-site report generation, PDF export to USB. WinCan compatible — seamless integration with WinCan Web Cloud. Data transfer via USB, SDHC, or WiFi (email PDFs, images, footage).

WinCan compatible

Request Quote

Control Unit Lineup

MCU310 — SOLO PRO+: 10" touchscreen, 800 nits, 128 GB, WiFi, IP65.
MCU312 — Proteus HD: daylight readable, 1080p recording, touchscreen + mouse + keyboard.
CCU208 — Proteus standard: view, record, annotate composite video.
VKU/VCU — Van-fit: desktop keyboard, free-standing or built-in.

4 control unit models

Request Quote

Cable Reels

ACR350/500-HD — Automatic HD, 1,640 ft (500 m), full HD over copper.
ACR350 — Automatic lateral, 1,150 ft Kevlar, for LAT150.
LCR350 — Lateral reel, 1,150 ft cable + 150 ft push rod.
RMP250 — Manual portable, 820 ft, for Proteus Lite.

Interchangeable system

Request Quote

Technical Specifications

Compare crawler, camera and lateral launch specs side by side.

ParameterCRP90CRP300CPL150S (Lite)
Dimensions3 × 3 × 12"8 × 9 × 23"5 × 5 × 16"
Weight9.9 lbs70 lbs21 lbs
Pipe Range4" – 9"12" – 86"6" – 24"
Sonde Frequencies33 / 512 / 640 kHz33 / 512 / 640 kHz33 / 512 / 640 kHz
ElevatorMotorisedMotorisedManual
DriveAll-wheel drive, CAN BusAll-wheel drive, CAN BusAll-wheel drive, CAN Bus
Special FeaturesDual aux light mounts, soft rubber tyresDual-axis inclination sensor, aux lightsQuick-change wheels, aux lights
Cable ReelCompatible with all Proteus reelsCompatible with all Proteus reelsRMP250 manual, 820 ft
ParameterCAM027CAM028LCAM090-HD
TypeAxial (self-levelling)Pan-Rotate-Zoom-LaserFull HD Pan-Rotate-Zoom-Laser
Dimensions3 × 2 × 2"6 × 3 × 3"Ø 3.3" × 6.1"
Weight9 oz40 oz2.4 lbs
Resolution / Sensor470 HTVL800 HTVL1080p Full HD (1920×1080)
Pipe Diameter—3.5" – 23.6"3.5" – 24"
Rotation—360° continuous, ±135° pan360° continuous, 135° bi-directional tilt
Zoom—Optical & digital10× analog zoom
Laser Measurement—Twin lasers (diameter/defect)Parallel + distance laser
Lighting9 LEDs (triple clusters)Ultra-bright LEDsBuilt-in LEDs
Pressure Rating1 bar (14.50 psi)1 bar (14.50 psi)1 bar (14.50 psi)
LensSapphire glassSapphire glassSapphire glass
ParameterLAT150
Dimensions24 × 5.5 × 5.1"
Weight36.5 lbs
Mainline Pipe Sizes6" – 80"
Lateral Pipe SizeAs small as 2.5"
Lateral Push Rod150 ft (45 m)
Mainline Cable Distance1,150 ft (350 m)
Drive8× wheel drive
Sonde33 / 512 / 640 kHz
Observation CameraForward-facing, 740 TVL, ultra-bright LEDs
Cable ReelsLCR350 (lateral) + ACR350 (mainline automatic)
Control UnitVKU/VCU Van Control Unit with desktop keyboard
CameraCAM050 (360° rotation, ±135° pan, twin lasers, distance sensor)
ParameterSOLO PRO+MCU310 Control Unit
Max Push Distance390 ft (1/2" rod, mainline)—
Pipe Range3" – 8" (centering skids)—
Camera OptionsCAM025 (axial), CAM026 (pan & rotate)—
Display—10" touchscreen, 800 nits
StorageUSB & SD media128 GB (exp. 2 TB)
WiFiYes — remote accessYes — PDF/image/footage sharing
ReportingEmbedded Pro PIPE+Embedded Pro PIPE+ + WinCan
Dimensions—19.5 × 7 × 15.5"
Weight—15.5 lbs
IP Rating—IP65
Languages—EN, FR, DE, RU
