The Vacall Lineup

Two product families, both engineered for hard work and long machine life — combination sewer cleaners and hydro-excavators, all with single-engine design and AllSmartFlow™ CAN bus controls standard.

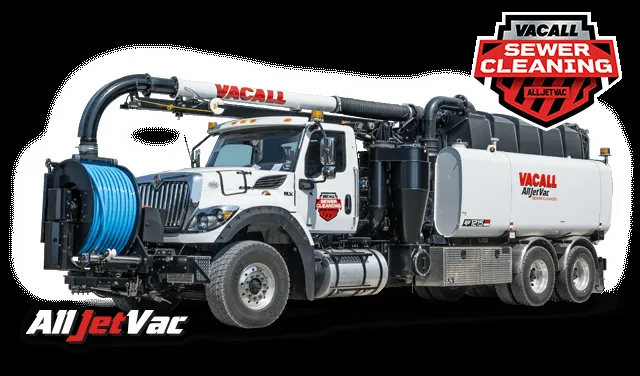

AllJetVac combination sewer cleaner product photo

AllJetVac Combination Sewer Cleaners

Setting new value and performance standards in sewer line maintenance. Front- or rear-mounted hose reel, 5,200 CFM blower, jetting to 3,000 psi, debris tanks to 12 cu yd.

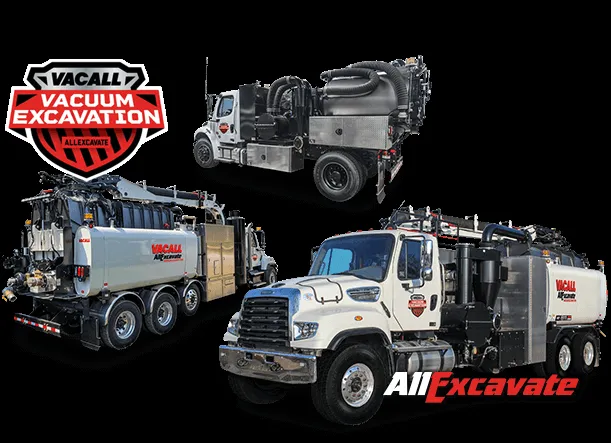

AllExcavate hydro-excavator product photo

AllExcavate Hydro-Excavators

Setting new standards in efficient, easy vacuum excavation. Single-engine operation, up to 6,200 CFM, 12 cu yd debris tanks, optional air excavation and high dump.

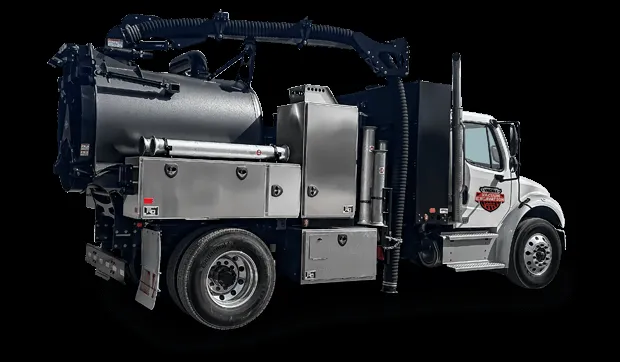

AE35 Non-CDL hydro-excavator product photo

AE35 Non-CDL (New)

Top-tier vacuum excavation on a non-CDL chassis. 26,000 lb GVW, 3.5 cu yd debris tank, 500 gal water — works fast and nimble where other machines can't.

AllJetVac Combination Sewer Cleaners

The best combination sewer cleaner on the market. AllJetVac machines provide contractors and governments with excellent jetting action and superior vacuum power to efficiently open clogged sewer lines and perform needed maintenance — with single-engine design that saves money, service time, and emissions.

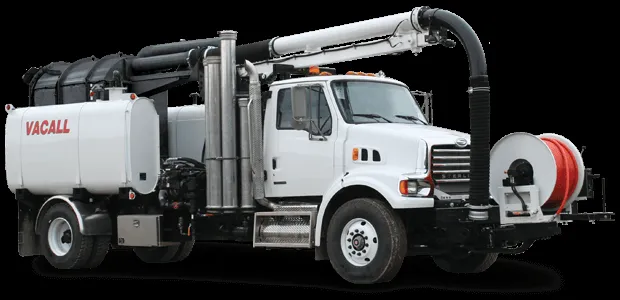

AllJetVac P Series

Front-mounted pivoting hose reel with 230° rotation. Roots 824 blower at 16″ Hg, 5,200 CFM. Debris tanks 6–12 cu yd, water to 1,500 gal. AllSmartFlow™ controls standard.

Request Quote

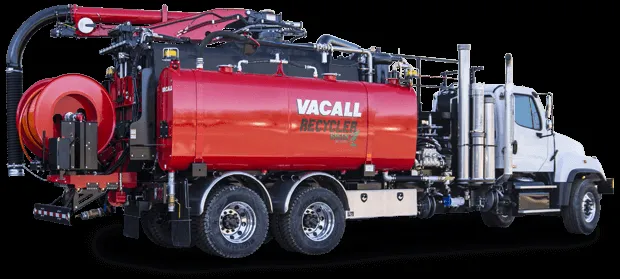

AllJetVac R Series

Rear-mounted hose reel for quieter operation. 8′6″ extending boom with 270° rotation. Debris tanks 10 or 12 cu yd, 1,500 gal water. AllSmartFlow™ CAN bus standard.

Request Quote

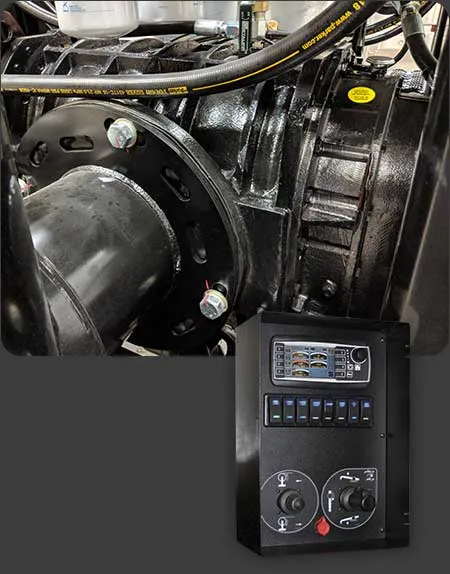

Single-Engine Power Module

One engine drives jetting, vacuum, and chassis — reducing fuel consumption, emissions, noise, and maintenance compared to dual-engine designs.

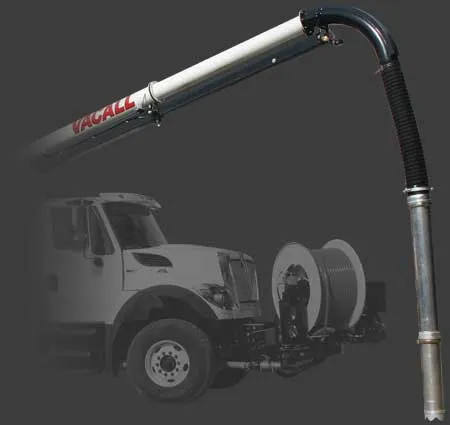

AllJetVac boom detail showing reach and rotation

Boom & Hose Reel

8″ boom with up to 25′ reach, 180° rotation, 552 sq ft work area, 1,000 lb capacity. Hose reel holds 800′ of 1″ hose with direct-drive rotation.

AllJetVac Options

Recycler: Continuous water recycling — vacuums water from sewer lines, 5-step filtering, reuses for jetting. Work all day without city water.
High Dump: Raises debris tank up to 76″ above ground, shifts 21″ back. Dumps into dewatering or roll-off containers.
AVS (Auto Valve System): Electric switching for jetting, washdown, and tank flush from the control panel.
Galvanized Debris Tank: Supreme Finish with lifetime warranty.
Cold Weather Recirculation · Wireless Remote · Emergency Hydraulics

AllExcavate Hydro-Excavators

Industry-leading vacuum excavation. AllExcavate machines deliver superior vacuum forces and water/air pressure with single-engine operation that reduces fuel consumption, emissions, noise, and maintenance. Available with hydro and optional air excavation.

AllExcavate AE 811

Howden-Roots 8x24 blower, 4,700 CFM free air at 18″ Hg. 8 cu yd debris tank, 1,100 gal water. Cummins L9 370 hp. GVW 66,000 lb. Optional air excavation and cold-weather boiler.

Request Quote

AllExcavate AE 1213

10x24 blower with three Kunkle valves, 6,200+ CFM at 18″ Hg. 12 cu yd debris tank, 1,300 gal water. Detroit DD13 450 hp. GVW 79,200 lb. Steerable pusher axle.

Request Quote

AE35 Non-CDL hydro-excavator on a nimble chassis

AllExcavate AE 35 Non-CDL (New)

Top-tier vacuum excavation on a non-CDL chassis. Howden-Roots 6x16 blower, 2,446 CFM. 3.5 cu yd debris tank, 500 gal water. Cummins 6.7 325 hp. GVW 26,000 lb — no CDL required.

Request Quote

AllExcavate Options

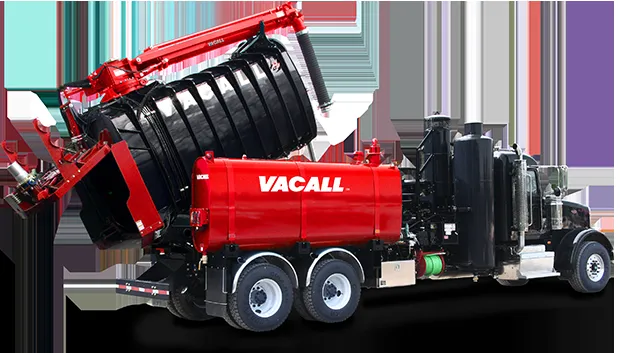

High Dump: Raises debris tank up to 76″ above ground level — dump directly into roll-offs on site, eliminating off-site dumping trips.
Air Excavation: 185 CFM @ 110 psi (low pressure) or 150 CFM @ 150 psi (high pressure), with 75′ of 1″ hose.
Cold Weather Boiler: Diesel-fired 470,000 Btu (options up to 940,000 Btu) with heated cabinetry.
Boom Options: Heavy-duty gum-rubber lined hose, steel tube-in-tube boom, or industry-standard steel elbow boom.
Supreme Finish: Galvanized debris tanks with limited lifetime warranty. Aluminum water tanks with limited lifetime warranty.

AllSmartFlow™ Intelligent Controls

The innovative Vacall AllSmartFlow™ control system is standard on every AllJetVac and AllExcavate — the industry's most advanced CAN bus smart controls. CAN bus boom-control joystick, LCD color display, 32-output microprocessor, and wired or wireless programmable pendant.

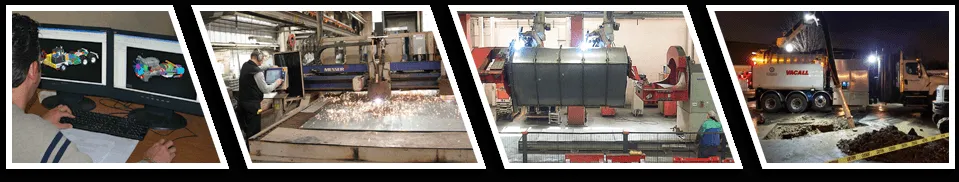

Built to Work

Manufactured in America by Gradall Industries in New Philadelphia, Ohio — a 450,000 sq ft facility with robotic welding and powder-coat painting. ISO 9001:2015 certified. Over 40 years of experience. Backed by the Gradall name, respected by governments and contractors worldwide.

Specifications

Real factory specs for every in-scope model. Select a tab to compare.

Specification	AllJetVac P Series
Blower	Roots 824 @ 16″ Hg; 18″ rotary lobe direct drive
Blower Vacuum	16″ Hg standard (217″ H₂O)
Blower Airflow	5,200 CFM free air
Blower Speed	2,470 rpm
Drive	Direct — OMSI air-shift transfer case
Debris Tank Capacity	6, 10, or 12 cubic yards
Dump Angle	42°
Debris Tank Construction	Oval, cylindrical sides; ASTM A572 Grd 50 steel, 1/4″–3/8″
Water Tank Capacity	1,000 or 1,500 gal (aluminum, fully welded)
Water Pump	Hydraulically-powered triplex plunger; 85 gpm @ 2,000 rpm
Water System Flow	50–120 gpm, pressures to 3,000 psi
Hose Reel	1″ hose, 800′ capacity, 230° rotation
Boom	8″ dia; 25′ reach; telescoping 8′6″; 180° rotation; 552 sq ft work area; 1,000 lb capacity
Hydraulic System	Pressure-compensated piston pump; 40 gal; 10 micron return filter
Sludge Pump	710 gpm @ 10′ head pressure
Controls	AllSmartFlow™ CAN bus, LCD display, 12-button proportional pendant

Models: AJV610 (6 cu yd single axle) · AJV810 · AJV1015 · AJV1215 (tandem axle). Height 12′0″, width 8′8″.

Specification	AllJetVac R Series
Debris Tank Capacity	10 or 12 cubic yards
Water Tank Capacity	1,500 gallons (aluminum, fully welded)
Boom	8′6″ extending; 270° rotation
Controls	AllSmartFlow™ CAN bus system standard
Hose Reel	Rear-mounted for quieter operation
Design	Positive displacement blower; single-engine

Specification	AllExcavate AE 811
Blower	Howden-Roots 8x24 with two vacuum reliefs
Blower Vacuum	3,500 CFM @ 18″ Hg (245″ H₂O)
Blower Power	185 HP @ 2,250 rpm
Blower Airflow	4,700 CFM free air
Drive	Split shaft PTO, direct drive to blower; OMSI air-shift transfer case
Debris Tank Capacity	8 cubic yards
Dump Angle	42°
Debris Tank Construction	Oval, cylindrical sides; 0.250″ steel; galvanized Supreme Finish
Water Tank Capacity	1,100 gallons (aluminum, fully welded)
Water Pump	0–25 gpm @ 3,000 psi; hydraulically powered triplex plunger
Excavating Hose Reel	Hannay spring rewind, 0.5″ x 75′
Boom	8″ bore x 330″ long; rear mounted; 327° rotation
Hydraulic Reservoir	51 gal max; 5 micron return filter
Engine	Cummins L9 370 hp @ 2100 rpm, 1250 lb-ft @ 1200 rpm
Transmission	Allison 3000 RDS automatic
Rear Suspension	Hendrickson RT463 @ 46,000 lb
GVW	66,000 lb max
Wheelbase	282″ (7,150 mm)
Overall Height / Length / Width	~12′6″ / ~34′5″ / ~8′8¼″
Boom Max Reach	~26′8″ (8.12 m)
Air Excavation Option	185 CFM @ 110 psi or 150 CFM @ 150 psi; 75′ of 1″ hose
Cold Weather Boiler	Diesel fired 470,000 Btu (options: 705,000 or 940,000 Btu)

Specification	AllExcavate AE 1213
Blower	10x24 with three automatic Kunkle valves
Blower Vacuum	Up to 4,800 CFM @ 18″ Hg (245″ H₂O)
Blower Power	220 HP @ 1,900 rpm
Blower Airflow	6,200+ CFM free air
Drive	Split shaft transfer case, direct drive to blower
Debris Tank Capacity	12 cubic yards
Dump Angle	42°
Debris Tank Construction	Oval, cylindrical sides; 0.250″ steel; galvanized Supreme Finish
Water Tank Capacity	1,300 gallons (aluminum, fully welded)
Water Pump	0–25 gpm @ 3,000 psi
Excavating Hose Reel	Hannay spring rewind, 0.5″ x 75′
Boom	8″ bore x 330″ long; rear mounted; 327° rotation
Hydraulic Reservoir	51 gal max; 5 micron return filter
Engine	Detroit DD13 GEN 5 12.8L 450 HP @ 1625 rpm, 1550 lb-ft @ 975 rpm
Transmission	Allison 4000 RDS automatic
Rear Suspension	Hendrickson RT463 @ 46,000 lb
Steerable Pusher Axle	13,200 lb max
GVW	79,200 lb max
Wheelbase	324″ (8,250 mm)
Overall Height / Length / Width	~13′4″ / ~37′9″ / ~8′7.5″
Boom Max Reach	~26′8″ (8.12 m)
Air Excavation Option	185 CFM @ 110 psi or 150 CFM @ 150 psi; 75′ of 1″ hose
Cold Weather Boiler	Diesel fired 470,000 Btu (options: 705,000 or 940,000 Btu)

Specification	AllExcavate AE 35 Non-CDL
Blower	Howden-Roots 6x16 with two vacuum reliefs
Blower Vacuum	2,200 CFM @ 15″ Hg (204″ H₂O)
Blower Power	70 HP @ 2,800 rpm
Blower Airflow	2,446 CFM free air
Drive	Chelsea PTO on transmission; full hydrostatic drive
Debris Tank Capacity	3.5 cubic yards (776 gallons)
Dump Angle	50°
Debris Tank Construction	Round steel tank; 0.187″ steel; galvanized and powder coated
Water Tank Capacity	500 gallons (aluminum)
Water Pump	0–10 gpm @ 3,000 psi (37.8 LPM @ 206.8 BAR)
Excavating Hose Reel	Hannay spring rewind, 0.5″ x 50′
Boom	6″ bore x 240″ long; rear mounted; 270° rotation; gum rubber liner
Hydraulic Reservoir	51 gal max
Engine	Cummins 6.7 325 hp @ 2400 rpm, 750 lb-ft @ 1800 rpm
Transmission	Allison 3000 RDS automatic
Rear Suspension	21,000 lb leaf spring, single axle
GVW	26,000 lb max (NON-CDL)
Wheelbase	192″ (4,875 mm)
Overall Height / Length / Width	10′0″ / 24′10″ / 7′11″
Cold Weather Boiler	Diesel fired 470,000 Btu; cabinet heater
